The Concrete Batching Plant is a vital solution for modern construction needs, designed to deliver high-quality concrete through precise and consistent mixing. It combines essential ingredients such as cement, sand, water, aggregates, and chemical admixtures in controlled proportions to produce uniform concrete batches every time.
Engineered for accuracy, efficiency, and reliability, this plant plays a pivotal role in the construction of roads, bridges, high-rise buildings, industrial structures, and large-scale infrastructure projects. Its automated operations ensure minimal manual intervention, reduced wastage, and optimal output, making it an indispensable asset for any construction site.
Available in various capacities and configurations, our Concrete Batching Plants are built to meet diverse project demands with ease, durability, and performance.
| PLANT MODEL | RI – 20 | RI – 30 | RI – 45 | RST – 60 | RST – 75 | RST – 90 | RST – 120 |
|---|---|---|---|---|---|---|---|
| Output Capacity | 20 M³ / Hr. | 30 M³ / Hr. | 45 M³ / Hr. | 60 M³ / Hr. | 75 M³ / Hr. | 90 M³ / Hr. | 120 M³ / Hr. |
| Mixer Unit | Turbo pan type mixer / twin shaft mixer | ||||||
| Main Mixer Reduction Gear Box | Imported planetary reduction gear box | ||||||
| Main Driver / Electrical Motor | 20 HP | 30 HP | 40 HP | 50 HP | 60 HP | 50 HP × 2 Nos | 75 HP × 2 Nos |
| Material Storage Unit | In Line Four Bin Feeder | ||||||
| Material Storage Capacity | 20 M³ | 30 M³ | 40 M³ | 60 M³ | 60 M³ | 90 M³ | 100 M³ |
| Material Weighing System | Digital load cell based weighing of material | ||||||
| Batch Feeding System | Through inclined belt conveyor / Inclined skip bucket | ||||||
| Cement Feeding System | Through Screw Conveyor | ||||||
| Water Weighing System | Digital load cell based weighing of water in separate tank | ||||||
| Ad Mixture Dozing System | Digital load cell based auto admixture dosing system | ||||||
| Control Panel | Fully automatic PLC based control panel | ||||||
| Control Cabin | Provided | ||||||
| Concrete Discharge Height From G.I. | 4.0 meter from the ground level | ||||||
| Total Connected Power (HP) | 52 HP | 74 HP | 87 HP | 120 HP | 145 HP | 200 HP | 275 HP |
| Suggested DG Set | 62 KVA | 82 KVA | 125 KVA | 160 KVA | 200 KVA | 300 KVA | 400 KVA |

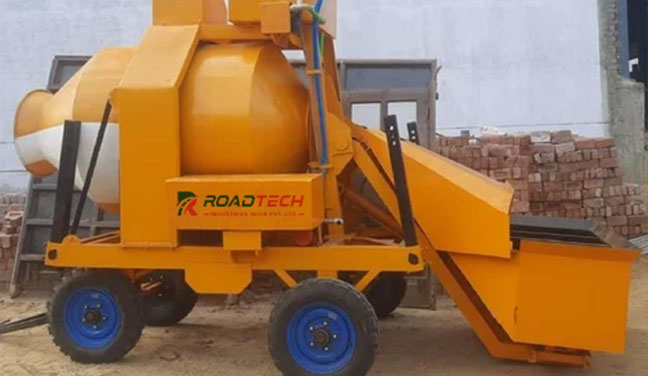

The Mobile Batching Plant is a smart, portable alternative to traditional concrete batching setups—perfectly suited for projects that require frequent relocation and fast installation. Designed for flexibility and high performance, it is an ideal choice for remote construction sites, roadwork, infrastructure development, and other time-bound applications.
Engineered with precision, these plants come equipped with advanced features such as in-line bin feeders, high-performance twin shaft or turbo pan mixers, digital load cell-based weighing systems, and fully automated PLC-based control panels. Together, these elements ensure consistent concrete quality, optimal efficiency, and seamless operation across diverse job sites.
Whether you're working in a remote area or managing multiple short-term projects, our Mobile Batching Plant offers the perfect balance of mobility, accuracy, and reliability—without compromising on output or quality.
